friz::AnimationType Class Reference

Abstract base class; all the real action happens in the derived templated Animation class, below. More...

#include <animation.h>

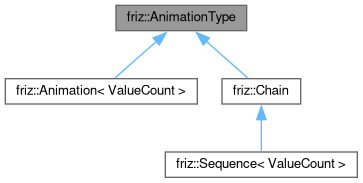

Inheritance diagram for friz::AnimationType:

Public Types
enum class	Status { processing , finished }
using	CompletionFn = std::function< void(int, bool)>
	callback on completion of this effect

Public Member Functions
	AnimationType (int id)
int	getId () const
void	setDelay (int delay)
virtual bool	setValue (size_t, std::unique_ptr< AnimatedValue >)
virtual Status	gotoTime (juce::int64 timeInMs)=0
	Advance all active animations to this point in time.
virtual void	cancel (bool moveToEndPosition)=0
	Cancel an in-progress animation, optionally moving directly to its end value.
virtual bool	isFinished ()=0
virtual bool	isReady () const =0
virtual AnimatedValue *	getValue (size_t index)=0
	Retrieve a pointer to one of this animation's value objects.
void	onCompletion (CompletionFn complete)

Public Attributes
CompletionFn	completionFn
	function to call when the animation is completed or canceled.

Protected Attributes
int	animationId { 0 }
	optional ID value for this animation.
int	preDelay { 0 }
	an optional pre-delay before beginning to execute the effect.

Detailed Description

Abstract base class; all the real action happens in the derived templated Animation class, below.

Member Typedef Documentation

CompletionFn

using friz::AnimationType::CompletionFn = std::function<void (int, bool)>

callback on completion of this effect

Parameters

int	id – ID of this animation.
bool	wasCanceled – true if the completion is because of cancellation.

Member Enumeration Documentation

Status

enum class friz::AnimationType::Status

strong

Enumerator
processing	The animation is running right now.
finished	Finished running, okay to clean up.

Member Function Documentation

cancel()

virtual void friz::AnimationType::cancel ( bool  moveToEndPosition )

pure virtual

Cancel an in-progress animation, optionally moving directly to its end value.

Parameters

moveToEndPosition

if true, go immediately to the end value.

Implemented in friz::Animation< ValueCount >, and friz::Chain.

getId()

int friz::AnimationType::getId ( ) const

inline

Returns

ID value for this Animation.

getValue()

virtual AnimatedValue * friz::AnimationType::getValue ( size_t  index )

pure virtual

Retrieve a pointer to one of this animation's value objects.

Parameters

index

Returns

AnimatedValue*

Implemented in friz::Animation< ValueCount >, and friz::Chain.

gotoTime()

virtual Status friz::AnimationType::gotoTime ( juce::int64  timeInMs )

pure virtual

Advance all active animations to this point in time.

Parameters

timeInMs

Time since some fixed event; only used internally to calculate deltas.

Returns

Status either processing or finished.

Implemented in friz::Animation< ValueCount >, and friz::Chain.

isFinished()

virtual bool friz::AnimationType::isFinished ( )

pure virtual

Returns

true if the effect has completed.

Implemented in friz::Animation< ValueCount >, and friz::Chain.

isReady()

virtual bool friz::AnimationType::isReady ( ) const

pure virtual

Returns

true if the animation is ready to be executed (e.g. has all its values set to valid AnimatedValue objects.)

Implemented in friz::Animation< ValueCount >, and friz::Chain.

onCompletion()

void friz::AnimationType::onCompletion ( CompletionFn  complete )

inline

Set the (optional) function that will be called once when this animation is complete. completionFn is public, so you can also just assign to it directly.

Parameters

complete

CompletionFn function.

setDelay()

void friz::AnimationType::setDelay ( int  delay )

inline

Set a number of frames to delay before starting to execute this animation.

Parameters

delay

# of delay frames.

setValue()

virtual bool friz::AnimationType::setValue ( size_t  , std::unique_ptr< AnimatedValue >    )

inlinevirtual

Reimplemented in friz::Animation< ValueCount >.

---

The documentation for this class was generated from the following file:

• Source/friz/control/animation.h
